Laboratory of Technical Tomography and Introscopy

    Screen - Converter of X-ray radiation
Screen - Converter of X-ray radiation in energy range from 5 keV to 30 MeV

Function

Kit of screens - converters of X-ray radiation is available for recording and visualization of spatially-distributed X-ray radiant flux in wide energy range under radiation monitoring of materials and products and under medical X-ray diagnostics.

Operating principle

Operating principle of screen – converter is based on capacity of luminescent material convert X-ray radiation to a visible image.

Composition

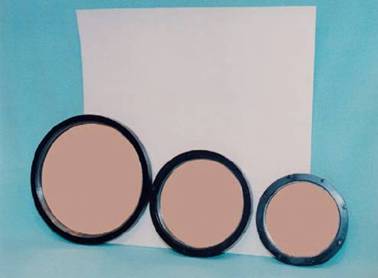

  • X-ray luminescent screens on base of polycrystalline cesium iodide for recording radiation with energy up to 1 MeV. Sizes of screens 400х400 mmxmm;
  • monocrystalline screen-converters for recording X-ray and penetrating bremsstrahlung radiation with energy from 50 keV to 30 MeV. Diameters of screens are 80; 120; 150; 200 mm.


Main specification:
Resolution capacity, lines per mm up 10
Dynamic range 105
Relative brightness of light, kJ/m2/per/min 0,2
Range of thickness (steel), mm up 300
Inspection sensitivity, % 0.5-1.5
