X-ray micro-tomograph "OREL-MT" |
|
|
|
|

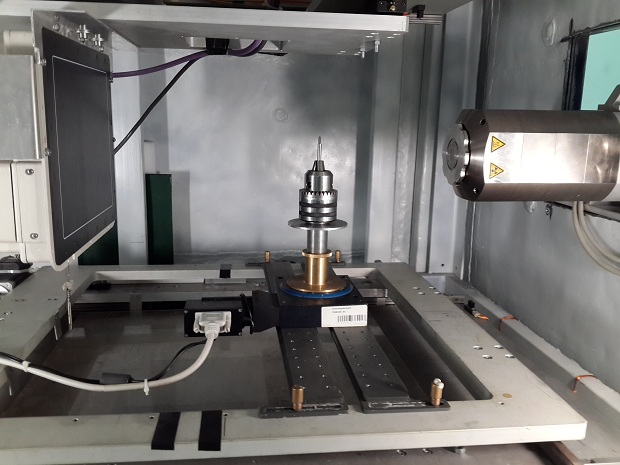

Flat panel detector, test object on a moveable rotating table, microfocus X-ray tube
|
|
|
| Main technical Specification: | | Space resolution of tomogram, mkm | up to 5 | Object thickness, mm | 0.5 - 150 | Object weigth, kg | 20 | Scope of working region, mm | 1150х600х550 | | X-ray tube | XWT 160-TC (X-RAY WorX) | Anode voltage, kV | 20 - 255 | Anode current, mkA | 0.05 - 1.0 | Focal spot, mkm | 0.9 | | Detector - flat panel | PaxScan-2520V (Varian) | Pixel pitch, mkm | 127 | Active pixel area, mm | 193x242 | Active pixel matrix | 1516x1900 |
|
|

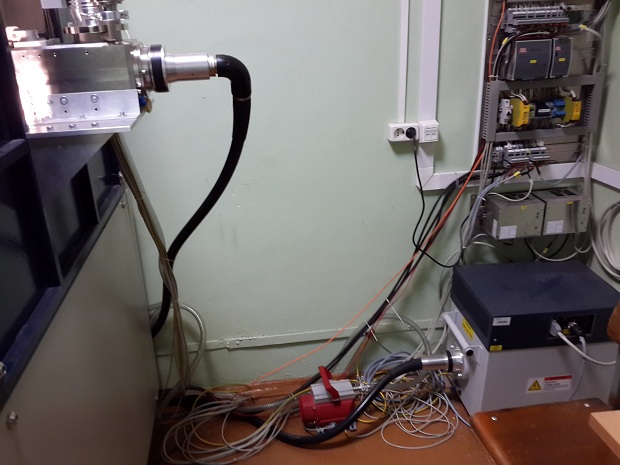

Electronics and power supply of microfocus X-ray unit
|
|
|
|
|
|
